Pool Filter Repairs

Making your personal pool filter repairs could be the topic of today’s post.

I’ve outlined the 12 most typical fixes that you may should do sooner or later to your Hayward filter, or even any pool filter.

You need to find out some procedure about repairing share filters ~ i am hoping these 5-step summaries tend to be helpful.

Hayward Sand Filter Repair Works

Sand Change: substitute your filter sand every 5-7 years, or sooner in the event the filter is undersized, or if perhaps it's washed up a couple of algae blooms. Jackie typed a whole post about how to transform share filter sand, but right here’s a 5-step summary.

1. Empty the container by removing the drain cap.
2. Take away the top mounted valve or dome.
3. Information away, or utilize a wet/dry vac to eliminate sand.
4. Pour in brand-new #20 silica sand, labeled pool filter sand.
5. Replace valve or dome securely, start-up filter on Rinse.

Horizontal Replacement: Replace your laterals every a decade. When one splits, replace the whole pair of laterals. If sand begins to put into the pool, the usual cause is one or even more broken laterals – here’s just how to repair it, in 5-steps.

1. Strain container and remove sand, as explained above.
2. Fold within the laterals vertically, or unscrew threaded laterals from hub.
3. Snap in or screw in your brand-new sand filter laterals.
4. Cap the standpipe, and pour the sand back in, or use brand-new sand.

Hayward Multiport Valve Repairs

Valve Change: If for example the multiport device begins to leak, or the handle loses tension, you could repair it with a brand new secret installation or a spider gasket, or you could just change the whole valve – in just 5-steps.

1. Cut pipelines with hacksaw, leaving adequate pipeline to reconnect.
2. Unclamp valve from tank, wiggle and pull up to eliminate.
3. Lube o-ring and push new valve on standpipe, clamp firmly.
4. Wrap threads 4x with Teflon; screw hand-tight, plus 1-1/4 turn.
5. Rejoin pipes with coupling or union; utilizing PVC primer and glue.

Spider Gasket Change: Losing liquid from the backwash line? Take away the top of the multiport valve and inspect the spider-web design gasket. If it is twisted, broken or used, right here’s just how to change it – 5-step style.

1. Eliminate 6 screws around valve lid and take out key installation.
2. Use little flathead screwdriver to remove all the old gasket.
3. Put small dabs of super glue or silicone into the grooves.
4. Press in brand-new gasket, wipe-off any extra silicone.
5. Reassemble by changing key construction within the correct positioning.

Cracked Valve system: if you have a tiny crack around in which the pipes screw in to the device harbors, or where in fact the force measure screws in, we were holding over tightened, or had a lot of layers of Teflon tape (use 3-4 levels over clean threads).

1. Obtain SuperGlue ® or a fluid 2-part epoxy, like Plast-Aid ®.
2. Reduce pipeline on broken interface, or pull gauge and clean threads.
3. Thread pipe or gauge into gap to enhance crack to it’s widest.
4. Squirt expanded break high in Super Glue or fluid epoxy.
5. Quickly remove pipeline or measure; enable glue or epoxy to create.

Hayward Cartridge Filter Fixes

Leaking Pipe Connections: in case your filter is dripping where in fact the pipes can be bought in and out, inspect for cracks around where pipelines screw in. If noticed, fill with epoxy as described above. If leaking around the pipes, replace them in 5-steps.

1. Reduce dripping PVC pipe(s), making 2 ins of obvious pipeline to reconnect.
2. Unthread the pipe(s) from the filter in/out slot.
3. Wrap brand-new Male Threaded Adapter with 4 levels of Teflon tape.
4. Screw new MTA fixtures into filter human anatomy, hand-tight, plus 1-1/4 turns.
5. Rejoin with pipe, a coupling or union, and PVC primer and glue.

Leaking Filter Clamp: For your safety’s benefit, when you start up the filter, if the belly band holding the container halves collectively or keeping the multiport valve is leaking, turn off the pump straight away, and take these 5 steps.

1. Eliminate clamp musical organization and top filter half totally.
2. Remove belly band o-ring, and wipe clean with paper bath towel.
3. Exchange tank o-ring and apply a slim layer of share lubricant.
4. Swap lid and tense up clamp musical organization as tight because it is certainly going.
5. If it still leaks, loosen clamp band, reposition it, and retighten.

Broken Filter Tank: In the event the filter tank has a pinhole drip, or the full blown crack, the sole fix to make it to change the filter tank.

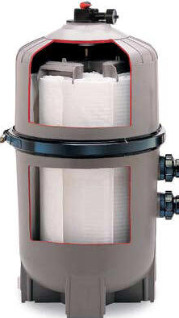

Hayward DE Filter Fixes

DE Filter Grid substitution: Every 10 years or so, DE filter grid textile begins to break-down and develop holes or rips. Whenever one goes, the others will soon follow. Brett penned a post with great pictures on how to alter DE filter grids in 6 simple steps, but here’s the 5-step executive summary.

1. Remove wing peanuts in addition to manifold to disassemble entirely.
2. Position the manifold upside-down on two bricks, facing up.
3. Start with the partial grid, and drive the grids in to the manifold.
4. Place the bottom spreader above and work it between your grids.
5. Substitute the thru bolts and tighten wing nuts, pulling assembly tight.

DE Manifold Replacement: Another reason for DE powder spilling in to the share is a cracked top manifold, or missing atmosphere screen or sock. Follow instructions above for switching DE grids to replace the manifold.

DE Finger Replacement: For those who have a Perflex® DE Filter, you don’t have filter grids, you have Flex Tubes, aka ‘fingers‘. Like filter grids, these deteriorate in the long run. You can replace just a couple if required, or purchase the whole filter nest set up.

1. Get rid of the nuts and bolts around the top, and bump handle pins.
2. Remove filter lid, after that raise out the whole nest assembly.
3. Fall from the tube sheet top, and pull up the damaged flex tubes.
4. Push the latest hands in position snugly, replace pipe sheet top.
5. With nest set up positioned, secure the filter top and bump handle.

a word of caution: filtration systems tend to be under some pressure and certainly will explode or rupture if clamp bands aren't precisely set up, or if valves after the filter are shut or pipelines plugged whilst pump is operating. Open-air bleeder and all sorts of return lines before restarting the pump!
